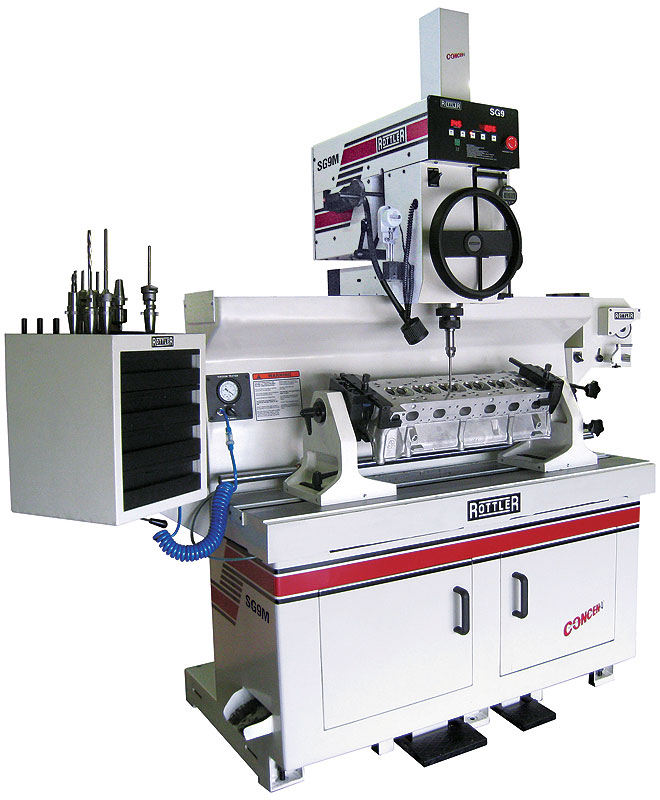

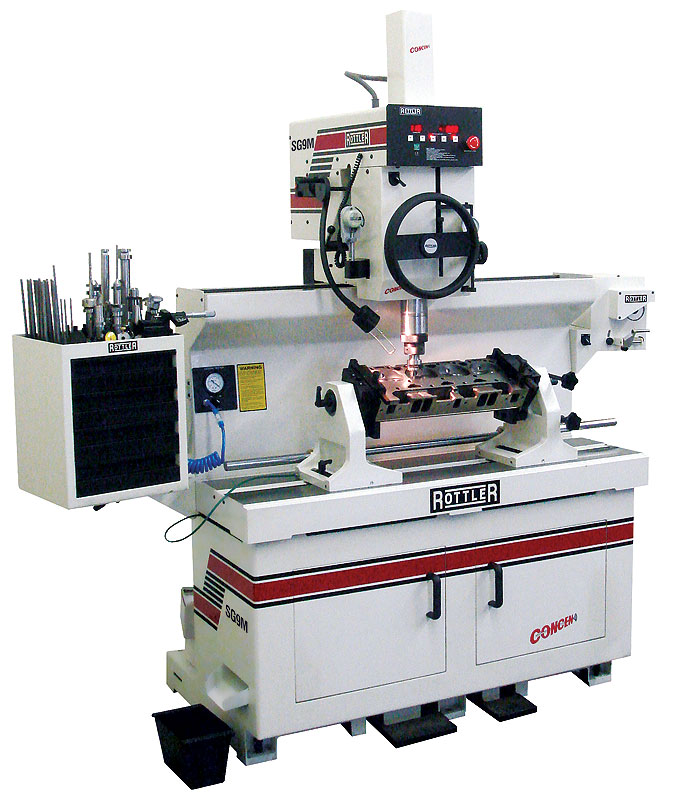

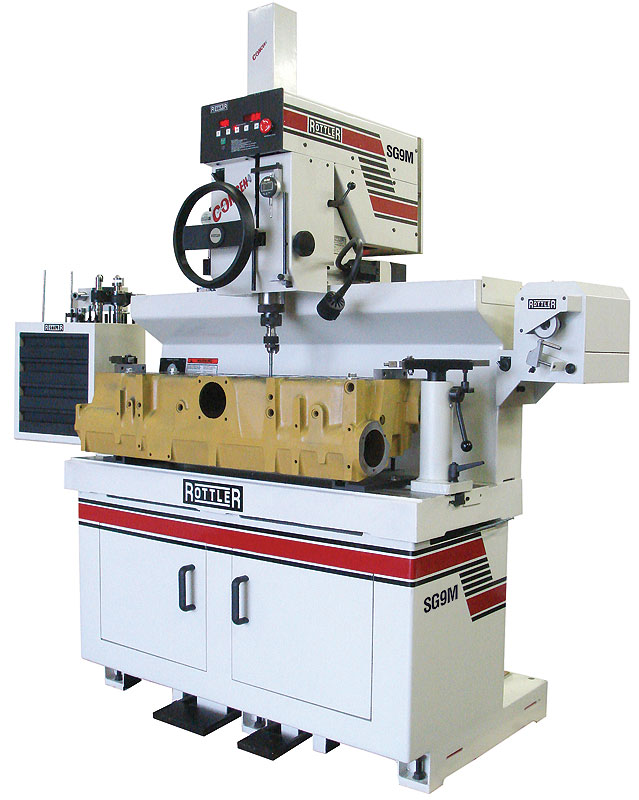

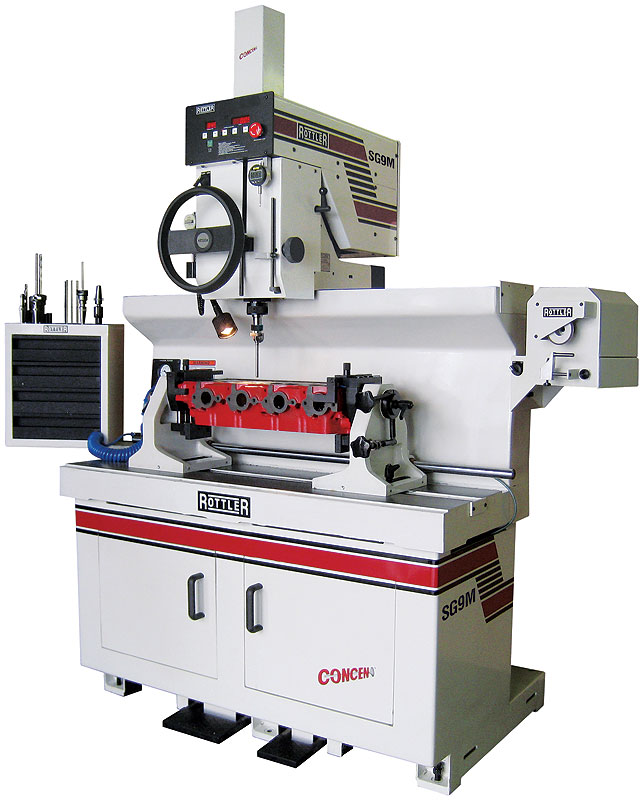

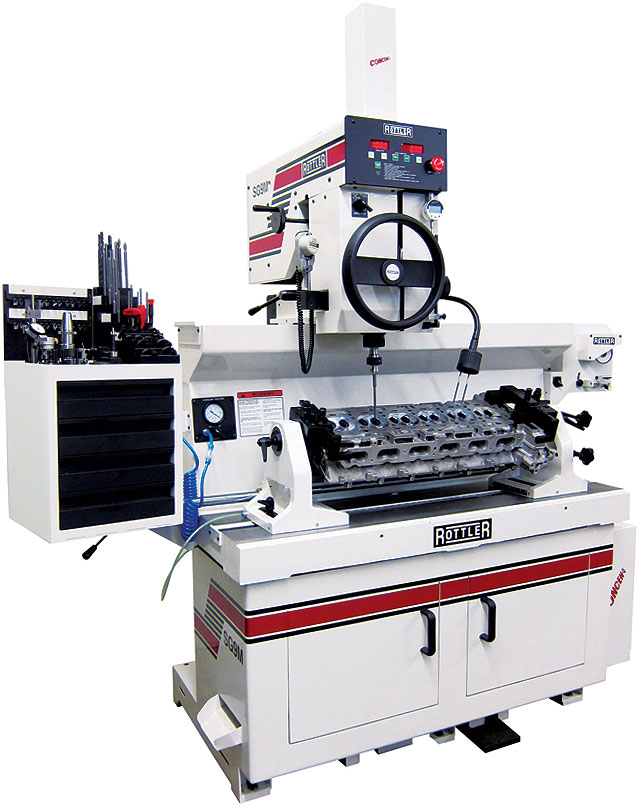

Rottler SG9MTS

MANUALMATIC ACTIVE SPINDLE Cylinder Head Valve Seat and Guide Machine Utilizing UNIPILOT Carbide Centering Pilots




Machine Operations

  • Seat & Guide Machining

  • Applicable Industries

  • Cylinder Head Shop
  • Drag Racing
  • Engine Building
  • Jobber Shop
  • Marine Workboat
  • Performance Racing
  • Power Generation
  • Remanufacturing
  • Small Engines
  • Tractor Pulling

  • PDF Resources

    SG9MTS Brochure
    SG Pilot Catalog
    SG Optional Equipment Catalog
    SG Inserts & Profiles Catalog
    SG9MTS Optional Equipment Catalog

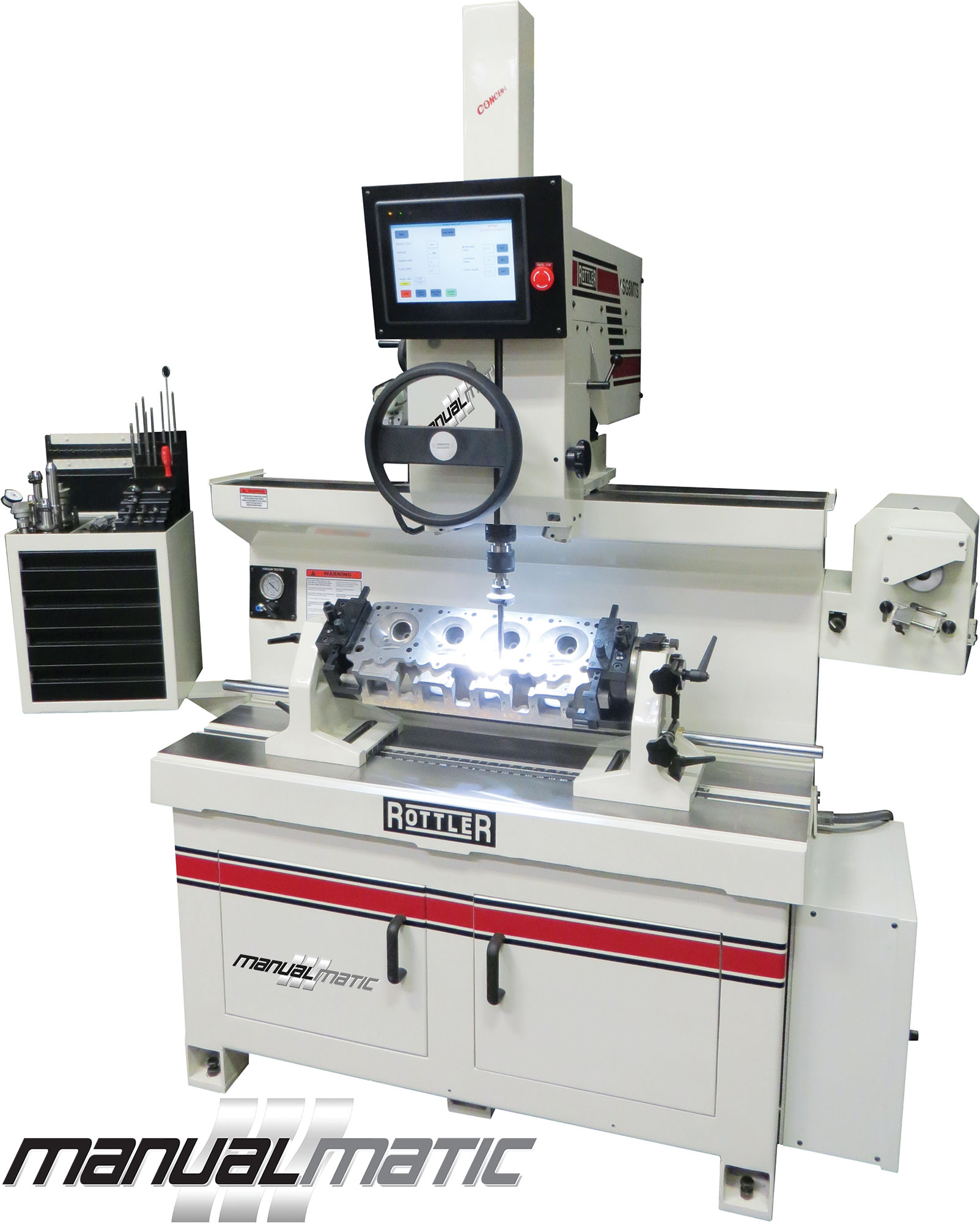

    SG9MTS MANUALMATIC Touch
    Screen Control Seat & Guide Machine


    The SG9MTS uses
    the proven patented UNIPILOT tooling system.

    The machine have 2 modes of operation:

    1. MANUALMATIC – a brand new concept has been added to these machines which should increase productivity by 30-50%. During seat cutting, the operator does not have to operate any buttons or switches, simply turn the spindle feed steering wheel up and down and the control takes care of all the functions like workhead float/clamp, pilot centering in the valve guide and spindle on/off. When depth of seat is reached, the control automatically changes spindle RPM to high/finish speed to give equal depth of every seat and consistent surface finish results.

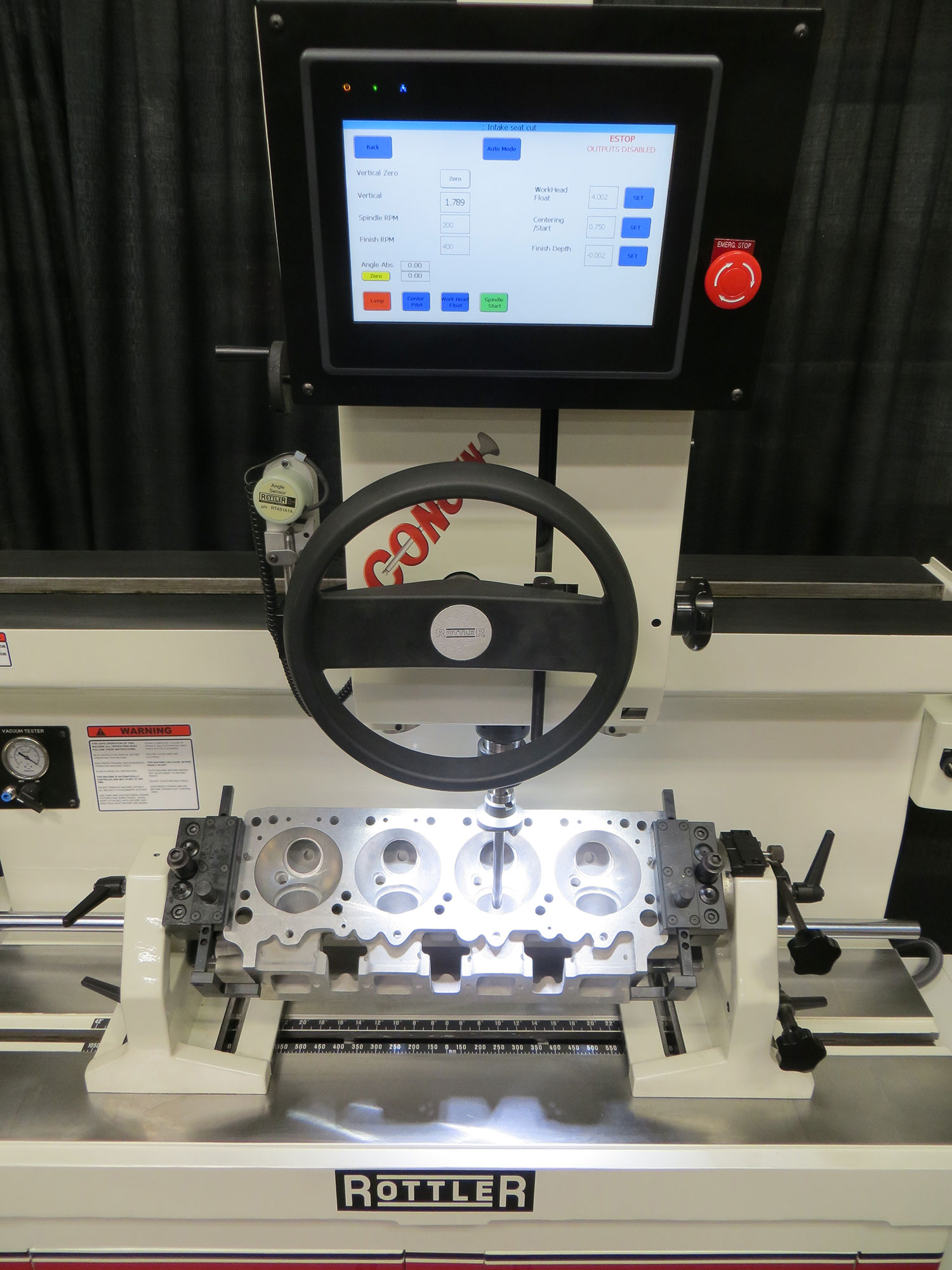

    2. MANUAL – the buttons on touch screen are the same as the previous SGM machines. There is no external dial gage, the spindle vertical position is displayed on the touch screen. Simply feed the spindle down until the cutting insert touches the valve seat, touch set zero button and then the digital display will show exactly where the spindle is at all times. The change from low to high/finishing speed is easier as there are 2 separate buttons. The foot pedal for clamp and float of workhead has been eliminated and now controlled on touch screen for manual and automatically for MANUALMATIC.


    The Rottler SG9MTS spindle is mounted on a sphere which allows the UNIPILOT to automatically center with the valve guide centerline while the Workhead is floating on air cushions. Once air floating stops and the Workhead clamps, the UNIPILOT and valve guide centerline are maintained while cutting the valve seat.
    • ACTIVE SPINDLE - Spherical Pneumatic Automatic Alignment System built into the Spindle for fast location of the pilot into the Valve Guide and Accurate Centering (Patent Pending)
    • Air Float Work Head
    • Heavy Duty Spindle - Diameter 3.150” (80mm) Hardened and Ground with 8” (200mm) of hand wheel vertical travel.
    • Rottler Automatic Tightening and Quick Release Spindle Lock Nut System for One Hand Operation for fitting and removing tooling to and from the spindle – never comes loose!
    Gives Best Concentricity
    Rottler's Rigid Precision carbide centering UNIPILOTS are manufactured to less than one tenth (.002mm) tolerance.

    Combined with the light weight air float Workhead the SG9MTS gives perfect centering in the valve guide and the best concentricity of any machine on the market.

    For more information: See the SG9MTS Brochure or give us a call at +1 (253) 872-7050
    Multi Angle Seat Cutting -
    Rottler's Precision CNC Ground Fine Grain
    Carbide Seat Cutting Inserts are available
    in many different designs to suit customer
    requirements. Single angle, multi angle or
    curves and radius shapes are available.
    Cutting tools are substantially faster and less
    expensive than grinding, where a different
    grinding stone is required for each angle.

    Storage Cabinet -
    Three Drawers and Top Tray allows
    convenient storage of wide selection
    of tooling available from Rottler.

    Built in Vacuum Tester -
    For quick checking of valve seats
    before removing the cylinder head.

    360 Degree Rollover Fixture -
    Provides quick loading and easy access to all
    sides of the head. Quickly levels head using
    the micro adjust feature. Clamps onto table
    firmly for chatter free cutting with extremely
    accurate concentricity centered by a pedal.
    Fixture floats on an air cushion for quick, easy
    setup with both hands. (Optional)

    Rigid Machine Construction -
    Heavy thick wall cast iron machine castings and
    precision machining during the manufacturing
    process give excellent chatter free valve seat
    cutting. Heavy duty cabinet/base extended to
    the rear for safe handling when machine has
    to be moved. Recessed toe kick allows more
    comfortable machine operation.

    Light Weight Workhead -
    The SG9 has a light weight workhead for fast and
    accurate centering for the minimum concentricity.
    At the same time, the workhead is heavy duty
    capable of machining large diameter valve seats.

    Spindle Alignment -
    Pneumatic system controlled by
    switch aligns spindle vertically to
    allow UNIPILOT to easily enter valve
    guide.

    Variable Speed Spindle -
    from 40 to 400 rpm
    Accurately select specific spindle speeds required for
    different machining operations. Soft touch buttons
    and bright digital display allow ease of operation.

    Electronic Level -
    Digital readout for quick, accurate
    adjustment.

    Adjustable Depth Stop

    15 Degree Tilt -
    Spindle tilts up to 15 degrees from vertical
    in both directions, providing quick alignment
    on all canted valve cylinder heads. Cuts
    each seat to the exact same depth - a must
    for today's computer controlled engines.

    Automatic Spindle Lock Nut -
    Patented Spindle Locking Nut system offers
    automatic tightening of tools in spindle. Won't
    come loose when cutting. One hand operation
    pushes tool up and spindle lock nut tightens
    automatically, ejects tool when loosened.

    Large Diameter Spindle -
    3.150 inch (80mm) diameter heavy duty spindle
    assures rigidity for chatter free operation. Outer
    spindle support bearings are adjustable over the
    whole length of the bearing area, similar to High
    Precision Boring Bar design giving decades of use.
  • ACTIVE SPINDLE - Spherical Pneumatic
  • Automatic Alignment System built into the Spindle for fast location of the pilot into the Valve Guide and Accurate Centering (Patent Pending)
  • Touch Screen Control for increased production and memory for settings
  • Air Float Work Head with Foot Pedal Control
  • Heavy Duty Spindle - Diameter 3.150" (80mm)
  • Hardened and Ground with 8" (200mm) of hand wheel vertical travel
  • Rottler Automatic Tightening and Quick Release
  • Spindle Lock Nut System for One Hand Operation for fitting and removing tooling to and from the spindle
  • Steering Wheel for Rapid and Fine Feed Mechanism for Precise Spindle Down Feed
  • Work head tilts up to 15 degrees in both directions for canted angle valve guides
  • Spindle Rotation Speed Infinitely Variable from 50-900RPM with Digital DisplayQuick change of RPM for Low and High by a single push of the bottom on the control panel
  • Digital Electronic Level for quick alignment of Valve Guides
  • Digital Gage for Depth Control of Spindle Travel.
  • 2-piece frame - adjustable for different length heads
  • Flexible, compact LED work light mounted on Work Head
  • Tool Storage Cabinet with four drawers, mounts on the machine and swivels for ease of use
  • Built in Vacuum Tester Kit includes hose and 7 pads
  • Cylinder Head Length Capacity in Optional 360 Degree Roll Over Fixture 44" (1120mm) and 52"(1270mm) with optional fixtures
  • Space requirement with Tool Cabinet mounted: length 74", depth 34", height 80" (1880 x 864 x 2032mm)
  • Paint Color Code: RAL9002 (Grey White)
  • Electrical requirements: 208-240V, 15A, 50/60 Hz, 1PH
  • Shipping Weight: 2,700lbs (1225kgs)
  • Shipping Dimensions: 39 X 60 X 86" (991 x 1524 x 2184mm)
  • MANUALMATIC Touch Screen Control for increased production and memory for settings
    SG9MTS Machine Specifications American Metric
    ControlManual
    Machine Weight2700 lbs1227 kg
    Travel - Spindle Nose to Table19.5"495mm
    Spindle - TaperR30 Quick Change with Automatic Lock Nut
    Spindle - Diameter3.15"80mm
    Spindle - Rotation Speed40 to 870 RPM
    Spindle - Motor2 HP1.5 Kw
    Valve Seat Diameter Range0.550"-3.150"14-80mm
    Cylinder Head Dimensions (with 360 degree rollover fixture)44L x 12W x 6H"1120L x 304W x 150Hmm
    Cylinder Head Dimensions (with Parallels)UnlimitedL x 16W x 5H"UnlimitedL x 406W x 125Hmm
    Spindle Travel/Stroke Vertical7.875"200mm
    Workhead Travel Horizontal - Airfloat/Airclamp43.5"1105mm
    Workhead Travel In/Out - Airfloat/Airclamp3.065"78mm
    Workhead Tilt (either side of vertical zero)15 Degrees
    Roll Fixture Movement In/Out with Clamp4.5"115mm
    Maximum Distance from Parallels to Spindle 13.312"338mm
    Dimensions - Machine39D x 60W x 86" H 991D x 1524W x 2184mm H
    Dimensions - Shipping39D x 59W x 83" H 991D x 1499W x 2108mm H
    Electrical Requirements208-240V, 15A, 50/60Hz, 1Ph
    Air Requirements4 cfm @ 90 psi l/min @ 6 bar
    Paint Color CodeRAL9002 (Grey White)
