Rottler F10A

Automatic Boring and Sleeving Machine




Machine Operations

  • Boring & Sleeving
  • Connecting Rod Boring
  • Cylinder Boring
  • Multi Purpose CNC (Custom Parts)

  • Applicable Industries

  • Diesel Rebuilder
  • Drag Racing
  • Earth Moving
  • Engine Building
  • Jobber Shop
  • Marine Workboat
  • Performance Racing
  • Remanufacturing
  • Small Engines
  • Tractor Pulling
  • Vintage Engine Rebuilding

  • PDF Resources

    FA Series Brochure
    FA & FX Optional Tooling Catalog
    FA Optional Equipment Catalog

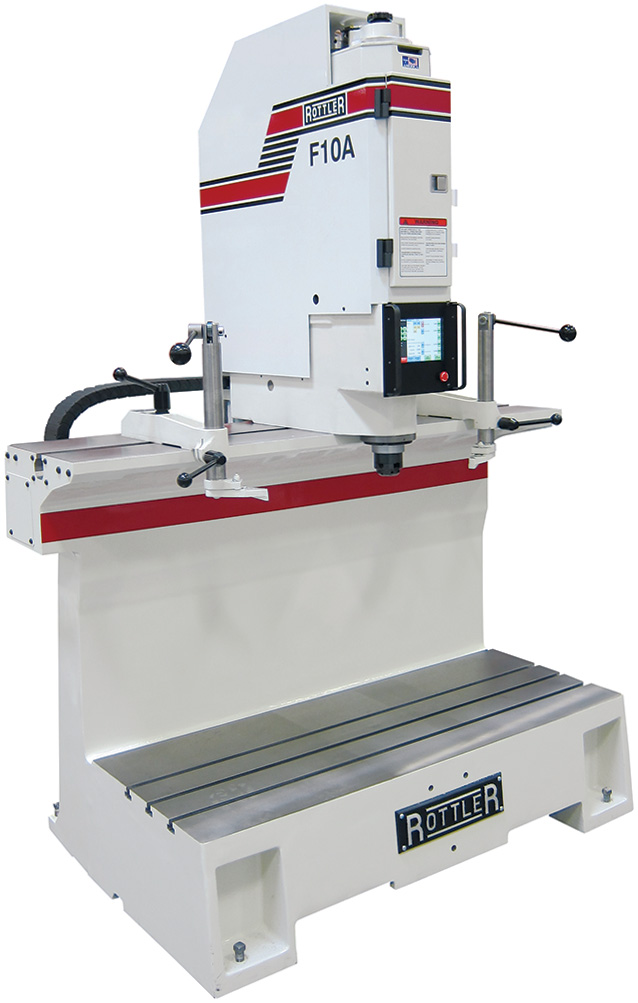

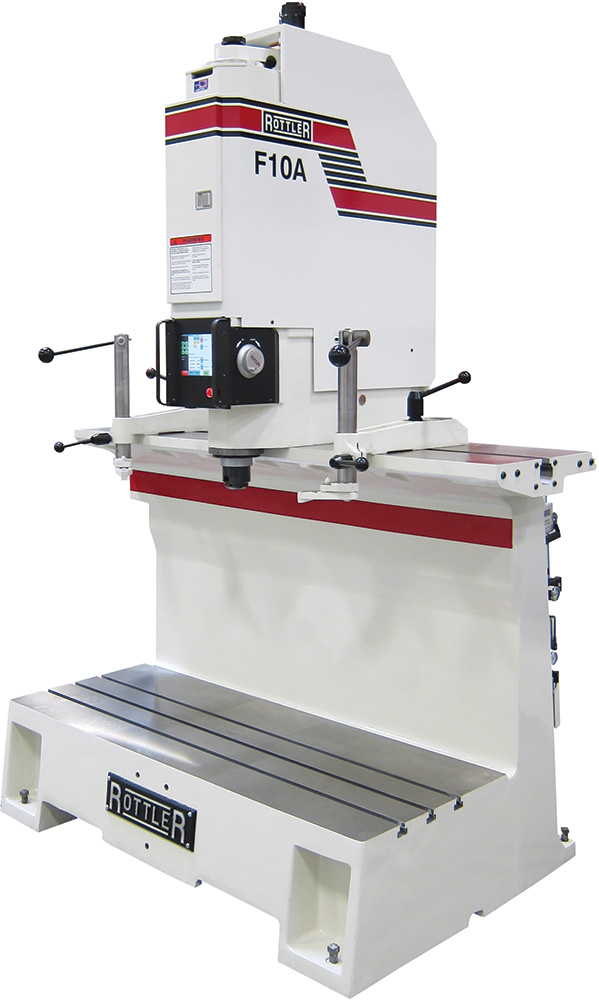

    The F10A Boring Bar has been designed for standard and large capacity machine work. The spindle diameter is larger than that of the F9A. It has been increased to 3.25" (8.2mm) for extra heavy duty machining up to a 9" (230mm) bore size. Large sleeve cuts can be taken at high spindle rpm's, and in many blocks, one pass sleeve cuts are possible, which increases productivity.

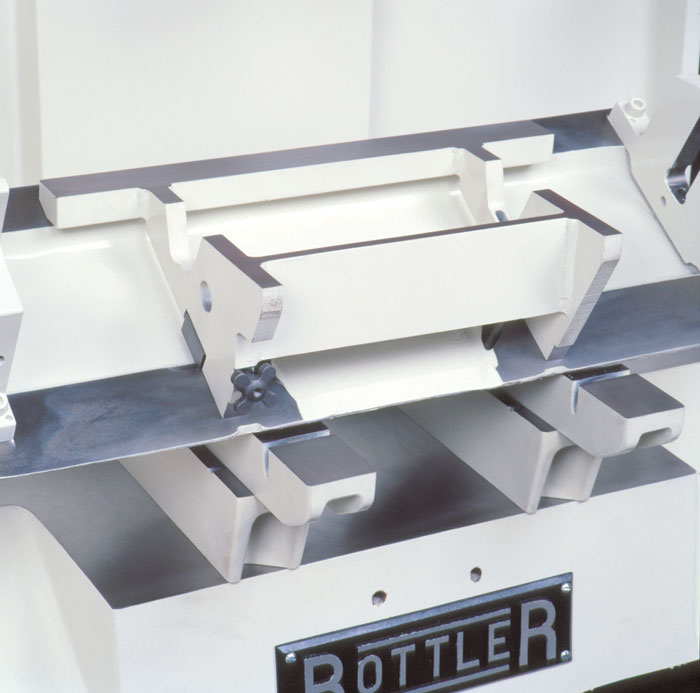

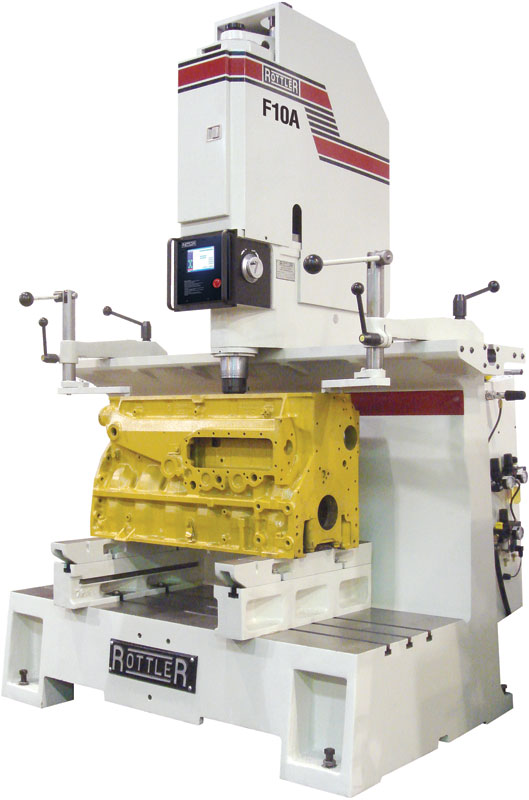

    The massive one piece meehanite, stress relieved, precision machined base of the F10A model allows the fixturing of large diesel blocks such as Cummins 855, Detroit 12V71, Mercedes 44V12 and odd jobs such as gear cases and connecting rods.

    The F10A machine can also handle small jobs down to 1.5" (38mm) bore diameter with optional cutterheads.

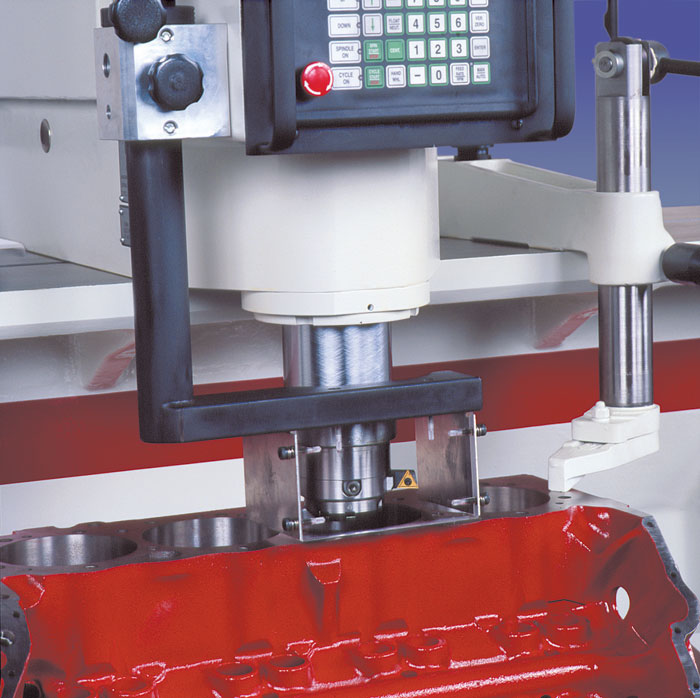

    Floor-to-floor bore a V8 block in 15 minutes. Bore through a 6" (152.4mm) bore 4" (101.6mm) in diameter in 35 seconds, .250 sleeve cuts are not a problem. Tooling is available from 1.500 to 9 inches in diameter. Straight through and blind hole boring tools are available. Precision ball screws on the feed give the ultimate feed control.
    • Speed - All FA Boring Bar models have
      the same high performance AC servo motor. Independent feed control
      allows you to change the feed rate from .001" (.025mm) to .012" (.3mm)
      per revolution.

    • Accuracy - The FA series uses a precision ground ball screw to control feed rate and cutter position. This allows the machines to repeat cutter position accuracy to .0002" (.005mm).
    • Strength - The Rottler proven spindle and bearing design gives you a rigid machine capable of making heavy sleeve cuts for a lifetime. The F10A has increased spindle size to ensure the best possible bore geometry at high spindle speeds.
    • Flexibility - With
      variable feed rates you are able to maximize the performance of the
      machine. Increase spindle feed rates for simple oversize bores. Decrease
      feed rates for sleeve cuts or counter bores. The F10A machines can bore
      from 1.5" (38mm) to 9" (230mm). Special carbide tools are available for counterboring, chamfer cutting, offset boring, and O-ringing.
    • Reliability - The F Series
      machines use a high-speed, cogged belt drive system. This and the use
      of two independent motors to run the spindle speed and feed, entirely
      eliminates the gear box.
    • Cost Savings - The high speed Rottler FA Boring Bar series machine can bore a block in half the time that other boring machines require.
      New insert technology is producing long lasting, inexpensive inserts
      which are capable of handling these high speed and feed rates, with the
      same cost per insert as previous styles. Inserts do not require
      sharpening and the low cost of these tools makes them the ultimate
      choice for boring cylinders.

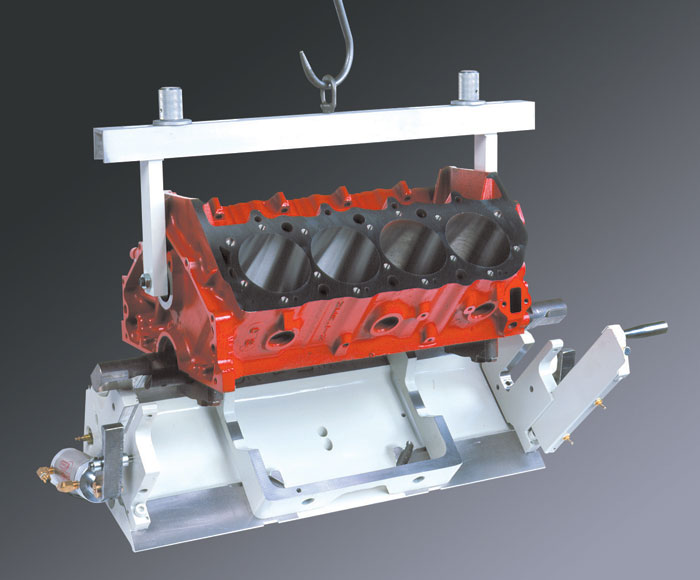

    • Block Clamp Arm - set of 2 (Part# 502-1-30)
    • CNC Touch Screen Control, Windows Operating System with Intel Processor
    • Internet connection to the machine computer must be provided for training support and service.
    • Automatic Vertical Cycles for Cylinder Boring, Resleeving and Counterboring
    • Programming and Machine Operation thru extra bright touch screen.
    • Electronic Handwheel for manual operation in .001" (.01mm) or .005" (.125mm) increments per Handwheel Detent
    • Precision Digital Readout, .0001" (.002mm) Resolution
    • Spindle Travel by Precision Ball Screw & AC Servo Motor - Infinitely Variable
    • Vertical Movement - Z Axis - Up and Down - 15" (380mm)
    • Spindle Rotation by AC Servo Motor - Infinitely Variable to 1200 RPM
    • Machine Workhead Floats on Air Cushion for Precision Centering controlled from the Touch Screen - Total Travel - Left/Right Direction 50" 1270mm
    • Heavy Duty Spindle 3.25" (82.5mm) Diameter with Inner Precision Angular Contact Bearings supported in Adjustable Outer Bearings

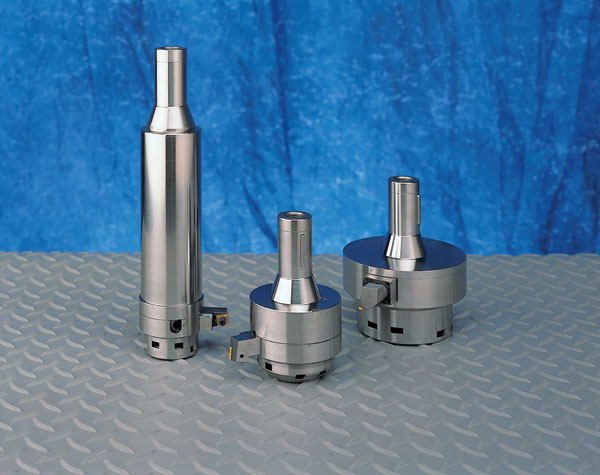

    • Quick Change Cutterhead System

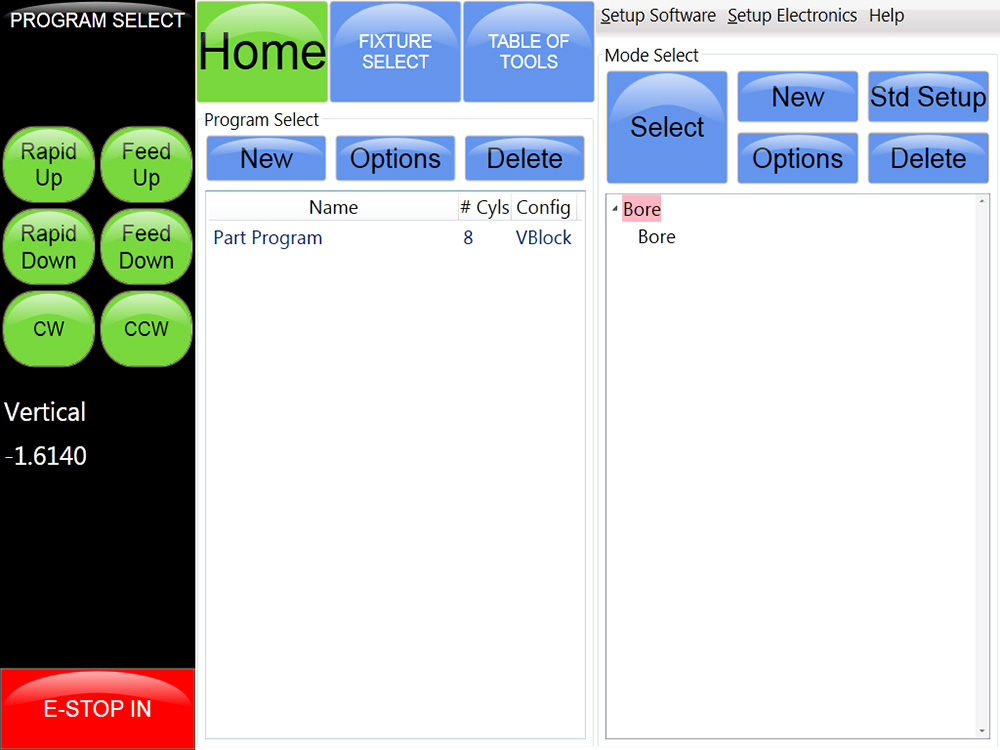

    The F10A Boring Bar is programmed and operated through CNC Touch Screen Control on a Windows Operating System with Intel Processor.  Instant Internet Support is available direct from machine.

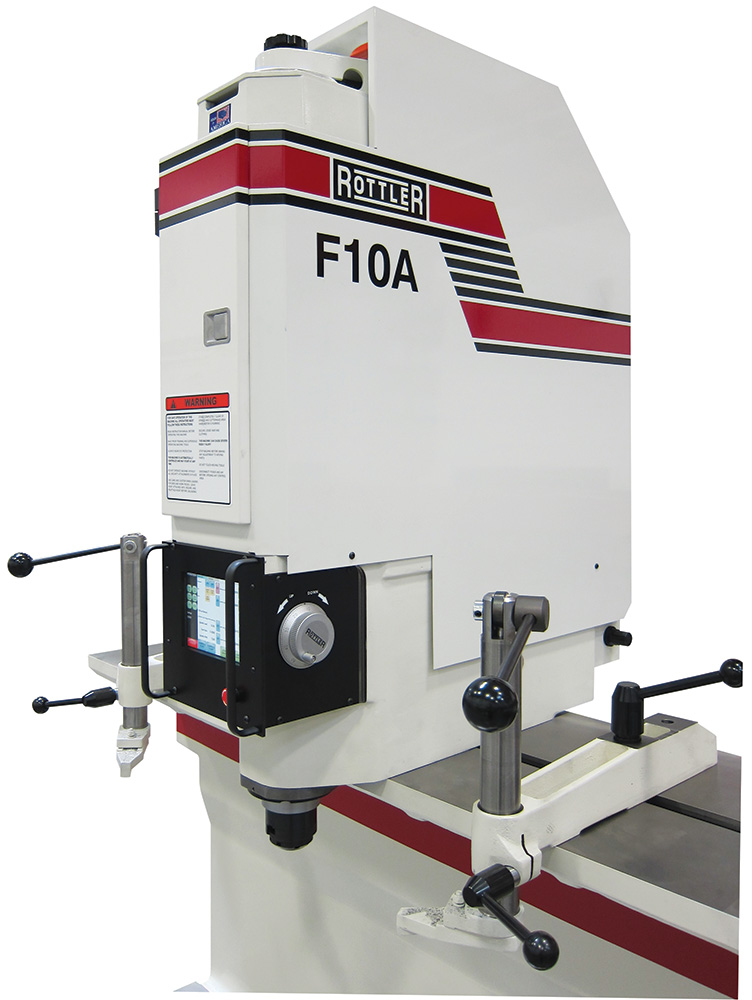

    The electronic handwheel provides Manual Operation with two modes.  In coarse mode, each "click" of the handwheel will move the machine exactly .001" (.01mm) and in fine mode, each click will move the machine exactly .0001" (.002mm). The pulse hand wheel allows you to feed .0001 per click or .001 per click. The LED reads the actual vertical position in .0001.

    For more information: See the FA Brochure or give us a call at +1 (253) 872-7050
    F10A Machine Specifications American Metric
    ControlAutomatic CNC
    Touch Screen4.5"114mm
    Machine Weight3700 lbs1682 kg
    Machine Height80"2032mm
    Table - Size54" x 21"1370 x 530mm
    Travel - Spindle Nose to Table26"670mm
    Spindle - Rotation Speed100 to 1200 RPM
    Spindle - Motor3.3 HP 2.5kW HP
    Bore Capacity (with Optional Cutterheads)1.5" - 9"38 - 228mm
    Feed per RevolutionProgrammable Feed Rates .001" - .012"Programmable Feed Rates .025 - .300mm
    Spindle Travel (Vertical)15"381mm
    Workhead Travel (Horizontal)50"1270mm
    Dimensions - Machine45D x 61W x 80" H 1143D x 1549W x 2032mm H
    Dimensions - Floor Space Requirements46D x 64W"1170D x 1625Wmm
    Dimensions - Shipping67D x 77W x 91" H 1702D x 1956W x 2311mm H
    Electrical Requirements208-240V, 30A, 50/60Hz, 1Ph
    Air Requirements1 cfm @ 90 psi28 l/min @ 6 bar
    Paint Color CodeRAL9002 (Grey White)
